Hey all,
I installed my Hopper extension a few months ago...
Here are the pictures:
The Product
Golden Grain 1201 fireplace insert

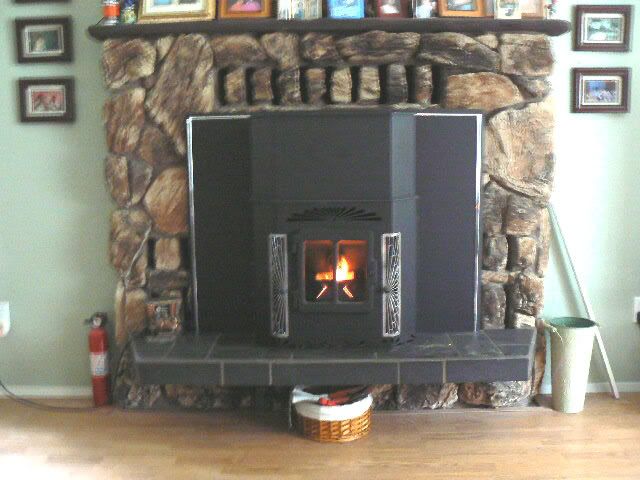

Full install
Side views:
Burn pot flames (Dial setting is 4):
Corn in Hopper Extension:
The issues
1. Random squeak coming from auger - squeak last approximately 1 - 2 seconds and occurs on all speeds.
2. Corn randomly does not feed through hopper with extension installed.
We, usually, push the corn down with a long stick (shown in full install picture on the right). This seems to get the corn down enough and start feeding the auger.
Problem #2 is most puzzling. The flame is going good, and then goes out 20 minutes later. When we push to corn down every 30 minutes or so, from a full corn load in hopper, the fire stays on. Once the hopper extension is 1/3 full, we do not seem to have as much trouble.
As far as problem #1, I heard six squeaks in the past three minutes on dial setting #4.
The corn is cleaned with a corn cleaner and Shop Vacuum.
Corn cleaner is the one reference from an earlier post:
http://cgi.ebay.com/CORN-CLEANER-FOR-CORN-STOVES-AND-BURNERS-SIFTER_W0QQitemZ330084732611QQihZ014QQcategoryZ41987QQssPageNameZWDVWQQrdZ1QQcmdZViewItem#ebayphotohosting
Any suggestions?
_________________
Just my two cents.
--
It is better to be human than to be perfectly imperfect. (ED)
Best regards,
Effran (a.k.a. Bluester)
Smile and the world smiles with you.
Cry and you will find yourself crying alone! |
|
| Back to top |
|
 |
|
|
oakridgeheat
Nubbin
Joined: 28 May 2006
Posts: 75
Location: Wyoming, Iowa
|
| Posted:Wed Feb 07, 2007 8:57 pm Post subject |
|
|
As far a squeek goes, are you sure it is coming from the auger? I have had to replace 2 exhaust blowers this year that when they go bad are squeeky loud, OR you could possibly have something stuck in the auger causing this squeek, I'd check that also.
As far as the corn not dropping down, not sure, but is the corn dry enough, at least 15%? Have not had this problem.
Hope I was able to give you some ideas.
Brian
_________________
Brian Tracy
Golden Grain 3101
"Heating Homes With America's Own"
www.oakridgealternativeheat.com |
|
| Back to top |
|
|
tallcorn
Super Burner
Joined: 02 Jun 2006
Posts: 9541
Location: Cedar Rapids, Iowa
|
| Posted:Wed Feb 07, 2007 9:46 pm Post subject |
|
|
Bluester, I edited your picture for you. You can right click it and save it. Photographing black objects can be a (insert word here-  ) I lightened the others too if you want them.
_________________
Countryside 3500P (pedestal version) used 8-9 yrs, 24/7 during days requiring heat. All original motors. Burns moldy corn, and pellets equally well. Burn it if you got it.
 |
|
| Back to top |
|
|
bluester
Joined: 08 Nov 2006
Posts: 11
Location: Olympia
|
| Posted:Wed Feb 07, 2007 11:36 pm Post subject |
|
|
Thanks Tallcorn!
What program did you use to do that? Thanks again, I will upload this picture tomorrow and have that as a link.
_________________
Just my two cents.
--
It is better to be human than to be perfectly imperfect. (ED)
Best regards,
Effran (a.k.a. Bluester)
Smile and the world smiles with you.
Cry and you will find yourself crying alone! |
|
| Back to top |
|
|
bluester
Joined: 08 Nov 2006
Posts: 11
Location: Olympia
|
| Posted:Wed Feb 07, 2007 11:41 pm Post subject |
|
|
| oakridgeheat wrote: | As far a squeek goes, are you sure it is coming from the auger? I have had to replace 2 exhaust blowers this year that when they go bad are squeeky loud, OR you could possibly have something stuck in the auger causing this squeek, I'd check that also.
As far as the corn not dropping down, not sure, but is the corn dry enough, at least 15%? Have not had this problem.
Hope I was able to give you some ideas.
Brian |
oakridgeheat,
Actually, I am not sure it is coming from the Auger!
Is there a "safe" way to see if there is something stuck in the Auger?
I know to "cut" the power and all, but do I have to pull the insert out?
That would me I may have to disconnect the flu pipe and air intake pipe.
Eeeeww
_________________
Just my two cents.
--
It is better to be human than to be perfectly imperfect. (ED)
Best regards,
Effran (a.k.a. Bluester)
Smile and the world smiles with you.
Cry and you will find yourself crying alone! |
|
| Back to top |
|
|
tallcorn
Super Burner
Joined: 02 Jun 2006
Posts: 9541
Location: Cedar Rapids, Iowa
|
| Posted:Thu Feb 08, 2007 12:05 am Post subject |
|
|
| bluester wrote: | Thanks Tallcorn!
What program did you use to do that? Thanks again, I will upload this picture tomorrow and have that as a link. |
I have an old photo editor, Adobe PhotoDeluxe Business Edition 1.0. It was packaged with the software for a scanner. It's still one the easiest editors to use.
_________________
Countryside 3500P (pedestal version) used 8-9 yrs, 24/7 during days requiring heat. All original motors. Burns moldy corn, and pellets equally well. Burn it if you got it.
|
|
| Back to top |
|
|
oakridgeheat
Nubbin
Joined: 28 May 2006
Posts: 75
Location: Wyoming, Iowa
|
| Posted:Thu Feb 08, 2007 11:38 am Post subject |
|
|
You should be able to just take off one of the sides and gain access to the auger motor, I have not worked on an insert yet, but I do believe there are screws that will just take off the sides. Good Luck!!!!!
